Running on DataFlow

The pipeline runs as is on GCP DataFlow. The following documents how I deployed to my personal GCP account but the approach may vary depending on project/account in GCP.

Prerequisites

Cloud Storage

• A Cloud Storage bucket with the following structure:

./input
./output
./tmp

• Place the input files into the ./input directory in the bucket.

VPC

To get around public IP quotas I created a VPC in the europe-west1 region that has Private Google Access turned to ON.

Command

!!! tip We need to choose a worker_machine_type with sufficient memory to run the pipeline. As the pipeline uses a mapping table, and DataFlow autoscales on CPU and not memory usage, we need a machine with more ram than usual to ensure sufficient memory when running on one worker. For pp-2020.csv the type n1-highmem-2 with 2vCPU and 13GB of ram was chosen and completed successfully in ~10 minutes using only 1 worker.

Assuming the pp-2020.csv file has been placed in the ./input directory in the bucket you can run a command similar to:

python -m analyse_properties.main \
    --runner DataflowRunner \
    --project street-group \
    --region europe-west1 \
    --input gs://street-group-technical-test-dmot-euw1/input/pp-2020.csv \
    --output gs://street-group-technical-test-dmot-euw1/output/pp-2020 \
    --temp_location gs://street-group-technical-test-dmot-euw1/tmp \
    --subnetwork=https://www.googleapis.com/compute/v1/projects/street-group/regions/europe-west1/subnetworks/europe-west-1-dataflow \
    --no_use_public_ips \
    --worker_machine_type=n1-highmem-2

The output file from this pipeline is publically available and can be downloaded here.

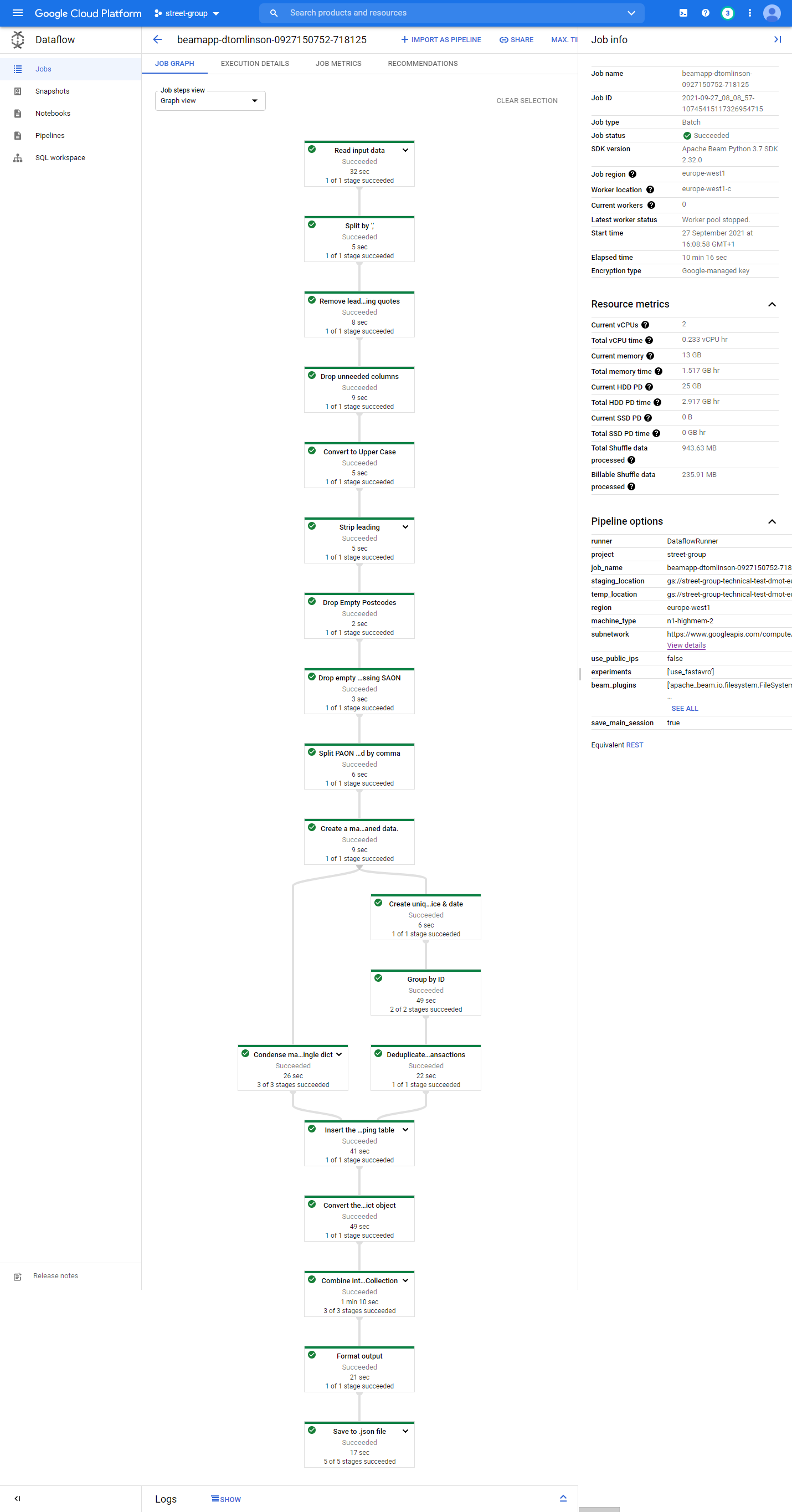

The job graph for this pipeline is displayed below:
